Beyond KHT Series Power Tong ready Shipping to Ecuadorian Client
Beyond KHT Series Power Tong ready Shipping to Ecuadorian Client
Shandong Beyond Petroleum Equipment CO.,LTD proudly announces that we have successfully supplied our Ecuadorian client with the latest model of power tongs. This product has won the favor of customers thanks to its excellent performance and unique design. Now we are preparing for its shipment.
I. Product Specifications
The key specifications of the power tong are as follows:
|
1.Applicable range |
Master tong：2 3 /8″--5 1 /2″ Back tong: 2 3 /8″--6 1 /2″ |
|
2.Opening size (master tong) |
5 7/8″ (150 mm) |
|
3.Tong head speed: (@40GPM / 150 LPM) |
High gear 78 RPM Second high gear 33 RPM Second low gear 22RPM Low gear 9.5RPM |
|
4. Torque (@2000PSI / 14 MPa) |
High gear 2500 ft.lb/3400 N·m Second high gear 5900 ft.lb/8000 N·m Second low gear 8800 ft.lb/12000 N·m Low gear 20000 ft.lb/27000 N·m |
|
5.Max Torque (@2250PSI / 15.5 MPa) |
Low gear 22000 ft.lb / 30000 N·m |
|
6.Overall dimensions (L×W×H) |
48″×33.9″×67.3″ / 1220×860×1708 mm |
|
7.Torque arm： |
Master tong 750 mm/29.5" Composite tong 542 mm/21.34" |
|
8.Measured velocity ratio: |
2.545 |
|
9.Weight: |
Master tong:1230 lb/ 560 kg Composite tong:2100 lb/ 950 kg |
|
10.Specifications of jaw plates: |
5.5″(139.7mm),5″(127mm),4.5″(114.3mm), 3.5″(88.9mm),2.88″(73mm),2.38″(60.3mm) and 6.5″(165.1mm) |

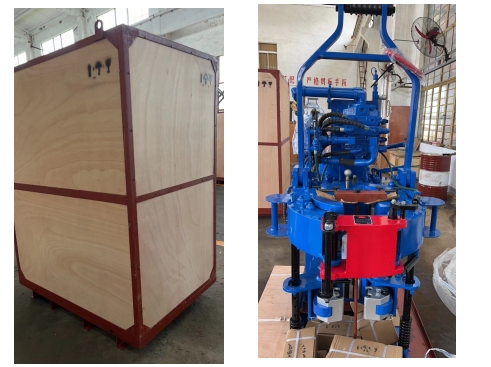

II. Packaging Design
To ensure the safety of the product during transportation and enhance its overall image, we generally use wooden packaging, which is environmentally friendly and reusable. Additionally, if clients have specific requirements, we can also tailor packaging solutions to meet their individual needs.
In addition to the power tong, Shandong Beyond Petroleum Equipment CO.,LTD also offers a variety of drilling rigs, mud pumps, manifold systems, and corresponding accessories, fully meeting the diverse needs of clients in the oil drilling and extraction industry. We are dedicated to providing comprehensive solutions for our clients, helping them gain a competitive edge in the highly competitive market.
Shandong Beyond Petroleum Equipment CO.,LTD looks forward to establishing long-term and stable cooperative relationships with our clients, moving towards a more prosperous future together.
