Kunci Bangku Hidraulik Malaysia

Masa: 2024-12-26

Hydraulic Bench Key/Hydraulic Breakout Machine is a multifunctional auxiliary equipment integrating hydraulics, transmission and automation. It is widely used in disassembly, assembly and maintenance of various pipes and downhole drilling tools in the fields of oil drilling and geological exploration.

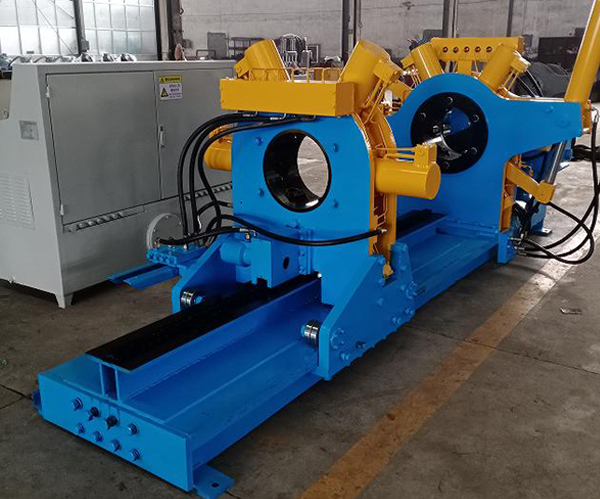

Gambar 2.jpg

As the one-stop drilling equipment supplier, Beyond also can supply for the hydraulic bench key. It’s main specifications are as following:

Julat Paip 2-38/" ~ 17-1/2" 60mm-450mm
Make-up/Break Max. Torque 132758 kaki-lbs 150KN.m/180KN.m
Skid Length 59ft 18000mm
Maximum screwing torque 2950 kaki-lbs 4.0KN.m
Maximum thrust of puller 28tons 280KN
Maximum pulling force of puller 24tons 243KN
Ukuran 7.2x7.2x59" 2.2x2.2x18m
Berat 28219lbs 12800kg

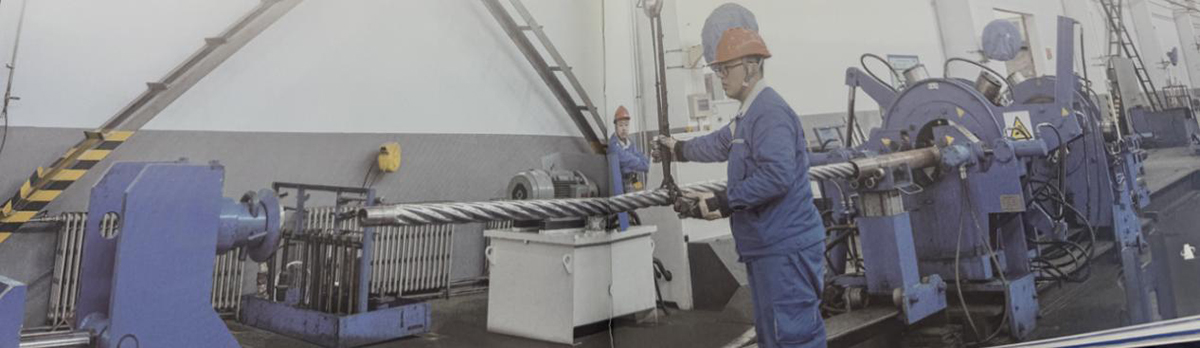

Gambar 3.jpg
