Technical Parameters:
Rig Model |
ZJ15CZ |
ZJ20CZ |
ZJ30CZ |
ZJ40CZ |
|
NO. |
ITEM |
Specification |
Specification |
Specification |
Specification |
1 |
Installed Power |
540HP (402KW) |
630HP (470KW) |
630 HP×2 (470 KW×2) |
630 HP×2 (470 KW×2) |
2 |
Max.Hook Load |
1350kN |
1580kN |
2250kN |
2250kN |
3 |
Max. Drill String Load |
500kN |
700KN |
1150KN |
1150KN |
4 |
Drawworks Rated Power |
450HP |
600HP |
1000HP |
1000HP |
5 |
Transmission Mode |
Hydraulic+ Mechanical |
Hydraulic+ Mechanical |
Hydraulic+ Mechanical |
Hydraulic+ Mechanical |
6 |
Drive Mode |
10×8 |
12×8 |
14×10 |
14×10 |
7 |
Nominal Drilling Depth (4 1/2"DP) |
1500m |
2000m |
4000m |
4000m |
8 |

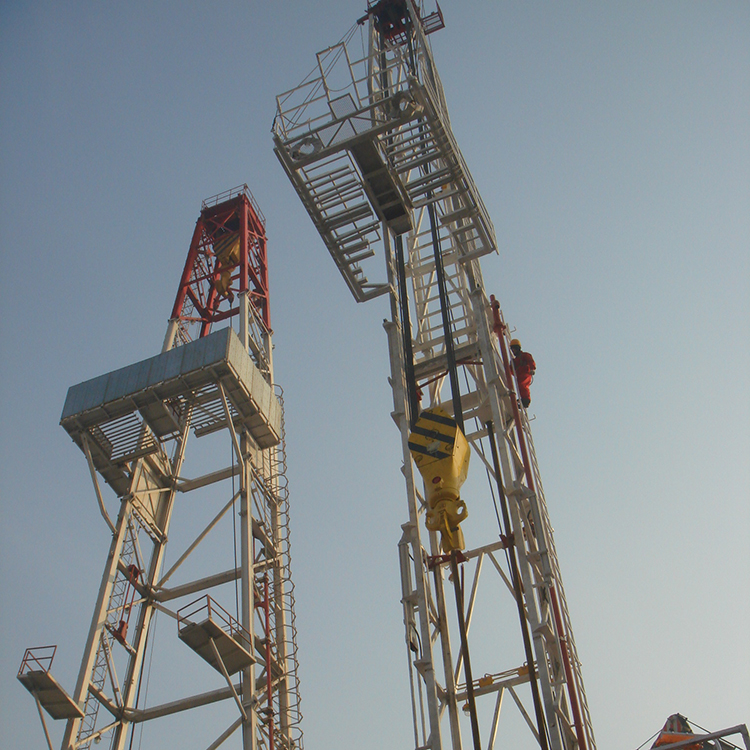

Mast Height |
33m |
35m |
38m |
38m |
9 |
Rig Floor Height |
4.5m |
4.5m |
6m |
6m |
10 |
Wirerope Diameter |
26mm |
29mm |
32mm |
32mm |
11 |
Hydraulic System |
14MPa |
14MPa |
21MPa |
21MPa |
12 |
Pneumatic System |
0.8MPa |
0.8MPa |
0.8MPa |
0.8MPa |
13 |
Travelling System |
5×4 |
5×4 |
6×5 |
6×5 |
14 |
Overall Size |
19.37×3.05×4.49m (Including Mast) (Without Mast) |
20.1×3.05×4.49m (Including Mast) (Without Mast) |
23×3.2×4.8m (Including Mast) (Without Mast) |
23×3.2×4.8m (Including Mast) (Without Mast) |
Company Introduction
SHANDONG BEYOND PETROLEUM MACHINERY CO.,LTD. is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

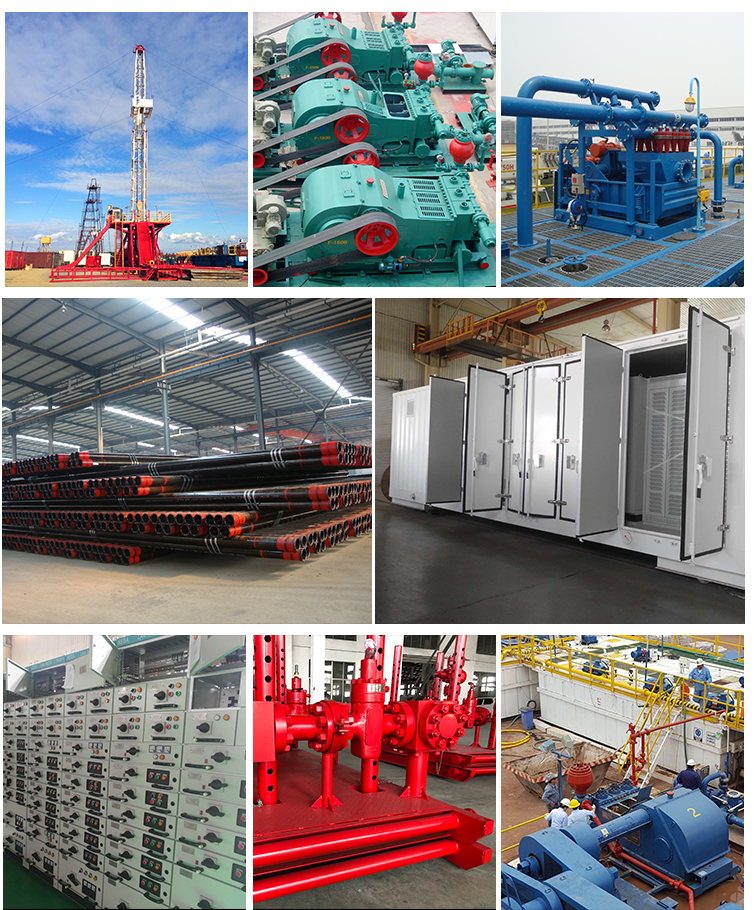

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs.
BEYOND believes that it will become your best cooperative partner in China.
BeyondPetro
Introducing the all-new 3000m Oilfield Truck Mounted Drilling Equipment Worksite Oil Drilling Rig. Designed for professionals in the oil and gas industry, this drilling rig is the perfect solution for your worksite needs.
This truck-mounted rig delivers superior drilling performance with just minimal downtime having an impressive drilling depth of up to 3000 meters. The BeyondPetro Oilfield Truck Mounted Drilling Equipment is designed to operate efficiently in challenging terrains using its sturdy design and base is solid which ensures maximum stability during drilling operations.
The drilling rig's rugged build is evident in its framework is structural and systems that allow seamless operations and safety at the work-site. Additionally, the drilling rig's central control system ensures accurate control of the drilling operations, which makes it an asset is valuable the drilling industry.
Engineered for reliability with minimum maintenance requirements. This drilling rig is fitted with high-quality drilling-built components to withstand drilling is rigorous without the necessity for regular repairs or replacements.
Moreover, the drilling rig is prepared aided by the technology is latest and innovations, such as automated drilling features, information purchase systems, and real-time monitoring systems that provide you with valuable drilling data, such as pressure and temperature, for increased efficiency, accuracy, and safety.
Transporting this from one worksite to another is not hard, as a result of its design is truck-mounted enhances flexibility. The truck's chassis was created to operate at high speeds while towing the drilling rig without disruption or damage to the rig's operations.
Trust BeyondPetro 3000m Oilfield Truck Mounted Drilling Equipment Worksite Oil Drilling Rig to provide you with the best drilling rig equipment in the industry.
