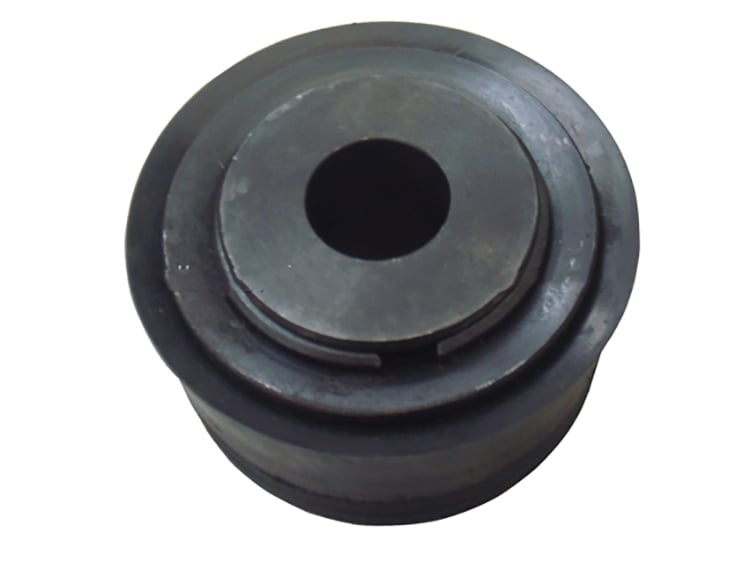

The piston assembly is one of the main parts of the hydraulic end system of the mud pump, and it is also one of the vulnerable parts in the drilling work. The discharge pressure of the mud pump is generated by the reciprocating linear movement of the piston assembly in the piston. The piston assembly is composed of a piston core, rubber, circlip, pressure plate, etc. The material of the piston core is 42CrMo, and the material of the piston rubber is nitrile rubber or polyurethane rubber.
Model |
F500 |
F800 |
F1000 |
1300 |
F1600 |
Power rating HP(kw) |
500(373) |
800(597) |
1000(746) |
1300(969) |
1600(1193) |
Stroke rating SPM |
165 |
150 |
140 |
120 |
120 |
Stroke length (in/mm) |
7.5"/190.5 |
9"/228.6 |
10"/254 |
12"/305 |
12"/305 |
Gear ratio |
4.286 |
4.185 |
4.207 |
4.206 |
4.206 |
Inlet dia. (in/mm) |
8"/203 |
10"/254 |
12"/305 |
12"/305 |
12"/305 |
Outlet dia. (in) |
4" flange 5000psi |
5-1/8" flange 5000psi |
5-1/8" flange 5000psi |
5-1/8" flange 5000psi |
5-1/8" flange 5000psi |
Valve |
API 5# |
API 6# |
API 6# |
API 7# |
API 7# |
Max. liner (in/mm) |
6-3/4"/170 |
6-3/4"/170 |
6-3/4"/170 |
7"/180 |
7"/180 |
Overall dimension
L*W*H (mm)
|
3658*2709*2231 |
3963*3025*2410 |
4267*3167*2580 |
4617*3260*2600 |
4615*3276*
2688
|
Approx.weight (kg) |
9770 |
14500 |
18790 |
24572 |
24791 |
BEYONDPETRO
Introducing the lineup of high-quality Piston Rubber assembly mine drilling rig Spare Parts for drilling mud pumps - the BW250, BW450, and BW800. These reliable and durable products have been designed with the needs of a modern drilling operation in mind, with exceptional performance and longevity guaranteed.
At BeyondPetro, we realize that the gear is right crucial to the success of any drilling project. is why we've developed these replacement is superior for drilling mud pumps - to help our customers obtain the work done right, every time. Whether you're working in oil and fuel exploration, mining, or other drilling fields, BeyondPetro's BW series of Piston Rubber assemblies will give you the confidence and reliability needed to tackle even the drilling challenges that are toughest.
Made from high-quality materials such as normal rubber, synthetic plastic, and polyurethane, our BW series of Piston Rubber assemblies are designed to withstand heavy use and extreme conditions. These wear-resistant parts are built to last, reducing downtime and maintenance costs for your operation. In addition, they are simple to install and remove, ensuring that your mud pump's performance is never compromised.
Not only are BeyondPetro's Piston Rubber assemblies extremely durable, their unique design also ensures which they maintain excellent stress integrity throughout the drilling process is whole. What this means is that they can be relied upon to deliver outcomes which can be consistent no matter how demanding the drilling task might be. With BW series Spare Parts from BeyondPetro, you will improve your drilling efficiency and productivity is overall.
Why wait? Contact BeyondPetro today and discover how our Piston Rubber assemblies can help take your drilling operations to the next level.
