Drilling rig for Oil Field Made in China High Quality

Product Description
Drilling rig for Oil Field Made in China High Quality supplier
Drilling rig for Oil Field Made in China High Quality supplier
Drilling rig for Oil Field Made in China High Quality details

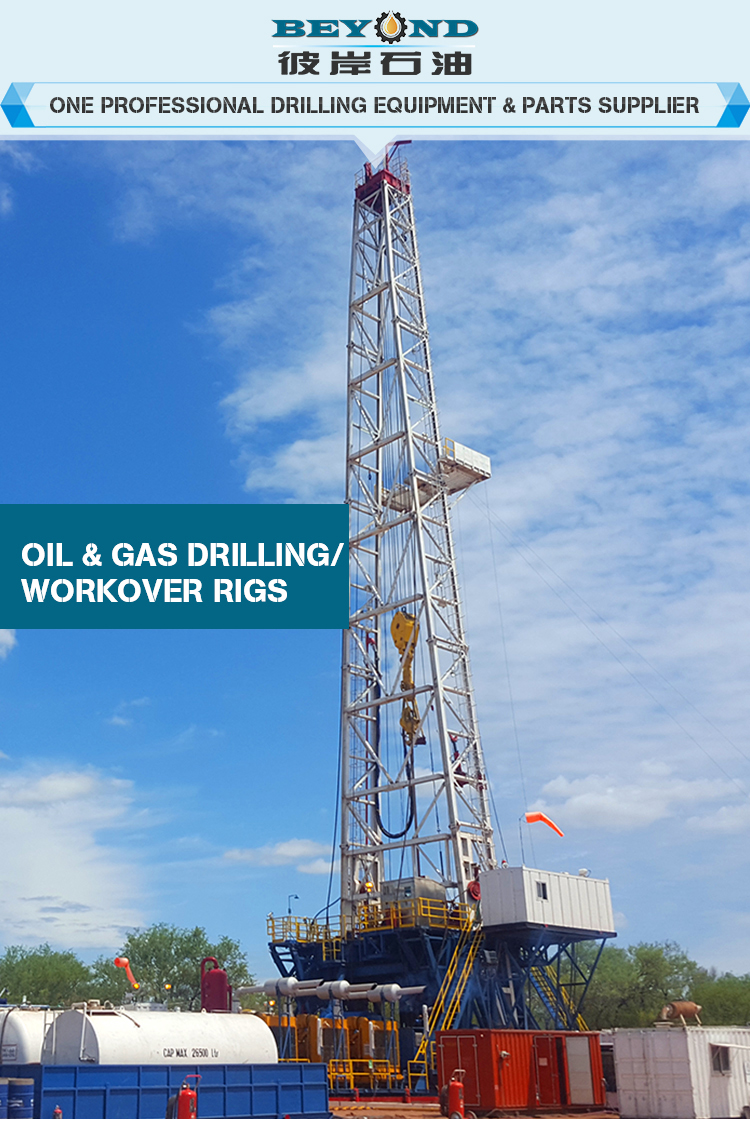

We supply a full line of land drilling rigs: skid-mounted, truck-mounted and trailer-mounted. Our skid-mounted drilling rigs are ranging from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m).
Type

Technical Spec.
ZJ30
ZJ40
ZJ50
ZJ70
ZJ90
Drilling Depth(M)
3000
4000
5000
7000
9000
Max. hook load (KN)
1700
2250
3150
4500
6750
Power of Drawworks (HP)
750
1000
1500
2000
3000
Drive & Transmission Mode
Mechanical
(belt/chain)
Mechanical/
Electric(AC/DC)/
Combined
Mechanical/
Electric(AC/DC)/
Combined
Mechanical/
Electric(AC/DC)/
Combined
Electric
(AC/DC)
Mast Height(M)
36/38
42
45
45/48
46/50
Substructure Height (M)
5
6.7
7.5
9
12
Rotary Table
ZP275
ZP275
ZP375
ZP375
ZP375

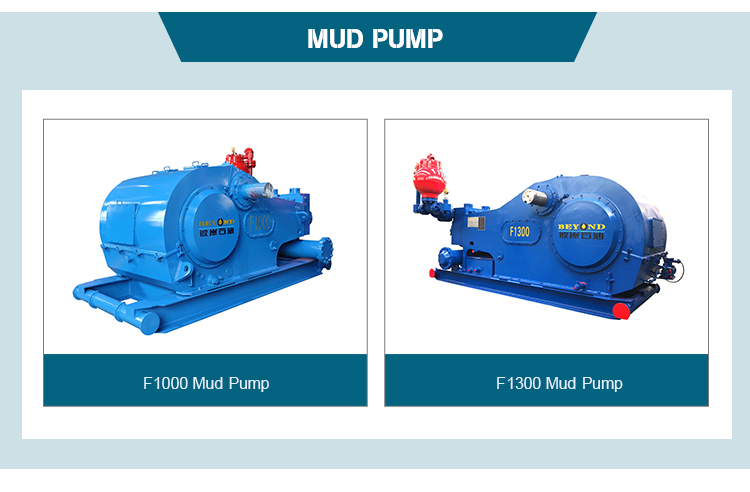

Mud Pump
F/3NB-1000
F/3NB-1300
F/3NB-1600
F/3NB-1600
F/3NB-2200L
Power of Mud Pump(HP/KW)
1000/735
1300/956
1600/1180
1600/1180
2200/1640
Mud Handing Capacity(m³)
185
240
300
360
360
Rope Diameter(mm)
29/32
32
35
38
45
Wireline System
5x6
5x6
6x7
6x7
7x8
Manifolds
Diameter(mm)xPressure(MPa)
∮103x35
∮103x40
∮103x70
∮103x70
∮140x80
Drilling rig for Oil Field Made in China High Quality manufacture
All its power system, drawworks, mast, traveling system and driving mechanism are all mounted on a self-propelled chassis for high efficient mobilization. BEYOND can provide mobile drilling rigs with drilling depth from 1000m to 4000m. The mobile rigs feature as heavy working load, reliable performance, good cross-country capability, convenient and lower cost mobilization.
Rig Model
ZJ15CZ (XJ-550)
ZJ20CZ (XJ-650)
ZJ30CZ (XJ-750)
ZJ40CZ (XJ-850)
ITEM
Specification
Specification
Specification
Specification
Installed Power
540HP (402KW)
630HP (470KW)
630 HP×2 (470 KW×2)
630 HP×2 (470 KW×2)
Max.Hook Load
1350kN
1580kN
1800KN
2250kN
Max. Drill String Load
500kN
700KN
750KN
1150KN
Drawworks Rated Power
450HP
600HP
750HP
850HP
Transmission Mode
Hydraulic+Mechanical
Hydraulic+Mechanical
Hydraulic+Mechanical
Hydraulic+Mechanical
Drive Mode
10×8
12×8
14×8
14×10
Nominal Drilling Depth (4 1/2"DP)
1500m
2000m
3000m
4000m
Mast Height
33m
35m
38m
38m
Rig Floor Height
4.5m
4.5m
6m
6m
Wirerope Diameter
Ф26mm
Ф29mm
Ф32mm
Ф32mm
Hydraulic System
14MPa
14MPa
21MPa
21MPa
Pneumatic System
0.8MPa
0.8MPa
0.8MPa
0.8MPa
Travelling System
5×4
5×4
5x4
6×5
Overall Size
19.37×3.05×4.49m
(Including Mast)
14.6×3.05×3.1m
(Without Mast)
20.1×3.05×4.49m
(Including Mast)
15.56×3.05×3.1m
(Without Mast)
23×3.2×4.8m
(Including Mast)
16. 56×3.2×3.2m
(Without Mast)
23×3.2×4.8m
(Including Mast)
16. 56×3.2×3.2m
(Without Mast)
Total Mass
52000 kg
58000Kg
73000 kg
85000 kg
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality details
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality factory
Drilling rig for Oil Field Made in China High Quality factory
Drilling rig for Oil Field Made in China High Quality details
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality supplier
Drilling rig for Oil Field Made in China High Quality factory
Drilling rig for Oil Field Made in China High Quality manufacture
Drilling rig for Oil Field Made in China High Quality factory
Drilling rig for Oil Field Made in China High Quality factory
Drilling rig for Oil Field Made in China High Quality supplier

Looking for a reliable and high-quality drilling for oil field purposes? Take a look at BeyondPetro's Drilling rig for Oil Field Made in China High Quality. Our items are renowned for their durability, effectiveness, and accuracy, making them an ideal alternative for busy oil field operations.



These are created to withstand extreme conditions – whether you are coping with harsh climate, tough landscapes, or varying conditions. We only make use of the highest-quality materials and elements within our products to ensure that each rig was built to last. Our advanced level of technology ensures to manufacture drilling rigs that is both efficient and reliable, helping you save some time and labor expenses.



Moreover, they're also fashioned with the operator in mind. Our drilling rigs are easy to put up and operate, and they also come with the latest security features that ensure that the workers remain safe while working. Our rigs are made to minimize downtime, to assist you to optimize your oil industry's productivity.



At BeyondPetro, we take pride in offering our clients a wide range of options to choose from. We know that every oil field procedure is unique this is why we provide a range of drilling rigs with varying specs to work for you. We have you covered whether you might need a portable, compact rig for small-scale operations, if not, a more substantial and a more powerful rig for larger jobs.



We recognize that reliability and quality are essential in the oil field equipment that is why we take great care in manufacturing our rigs to the best standards. Our Drilling rig for Oil Field Made in China High Quality had undergone rigorous quality control checks to be sure that they meet our strict safety requirements. Our company is confident that our manufactured in China drilling rigs are of the finest in the marketplace.
