Model | XJ650 | Engine Power | 470kW(630hp)/2100r/min | ||
Drilling Depth | 2,000m (6,560ft, 3-1/2" DP) | Derrick | |||
Workover Depth | 7,000m (23,000ft, 2-7/8" DP) | Net. Height | 35m (115ft) | ||
5,500m(18,000ft, 3-1/2" DP) | Max. Static Hook Load | 1,580kN（355,200lbf) | |||
4,200m(13,800ft, 4-1/2" DP) | Effective Lines | 8 | |||
Servicing Depth | 8,500m (27,900ft, 2-7/8" EUE tubing) | Racking Board Capacity | 2,000m（6,560ft, 4-1/2'' DP) | ||
Max. Hook Load | 1,575kN (354,000lbf) | Racking Board Height | 22.5m（73.8ft) | ||
Wireline Dia. | Φ29mm (11/8'') | Max. Wind Velocity | 30m/s(98ft/s) | ||
Traveling System | 4×5 | Drawwork | |||
Overall Dimensions(L×W×H) | 19.9×3.1×4.37m（65.3×10.2×14.3ft） | Rated Power | 310kW(415hp) | ||
Weight | 55,000kg (121,250lb) | Drum Dimensions | Φ429×918mm(Φ16.9''×36'') | ||
Max. Travel Speed | 45km/h (28mph) | Max. Faster Line Pull | 210kN (47,000lbf) | ||
Power and Carrier | Sanding Drum Dimensions | Φ965×264mm (Φ38''×10.4'') | |||
Carrier | Self-propeller 12×8 | Air assist Brake System | KOBELT Disc4-10.5-48.5'' Matched 5028-CM Caliper. | ||
Engine | CATC18 | ||||
Racking Board Capacity | 6,500m（21,330ft, 2-7/8" EUE Tubing) | ||||
Racking Board Height | 22.5m（73.8ft ) | ||||
Drawwork Rated Power | 315kW(420hp, Double Drum) | ||||
Main Drum | Φ429×965mm(Φ16.9"×38") | ||||
Max. Faster Line Pull | 210kN(47,200lbf ) | ||||
Sanding Drum | Φ965×264mm (Φ38"×10.4") | ||||
Air Assist Brake System | KOBELT Disc4-7-48″Caliper 5026-CM | ||||
Drill Floor ( L×W×H) | 6.74×5×5m（22.1×16.4×16.4ft） | ||||
Swivel Model and Max. load | SL150 1,350kN (303,500 lbf) | ||||
ZP175 Rotary Table | Max. Load 1,350kN (303,500 lbf ); Max. Open Dia. 444.5mm(17.5") | ||||
We supply a full line of drilling rig packages:

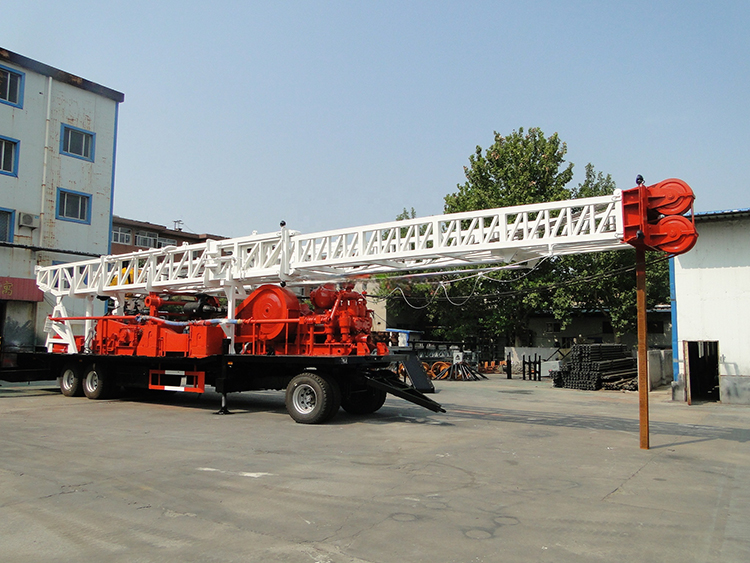

skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs （Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.

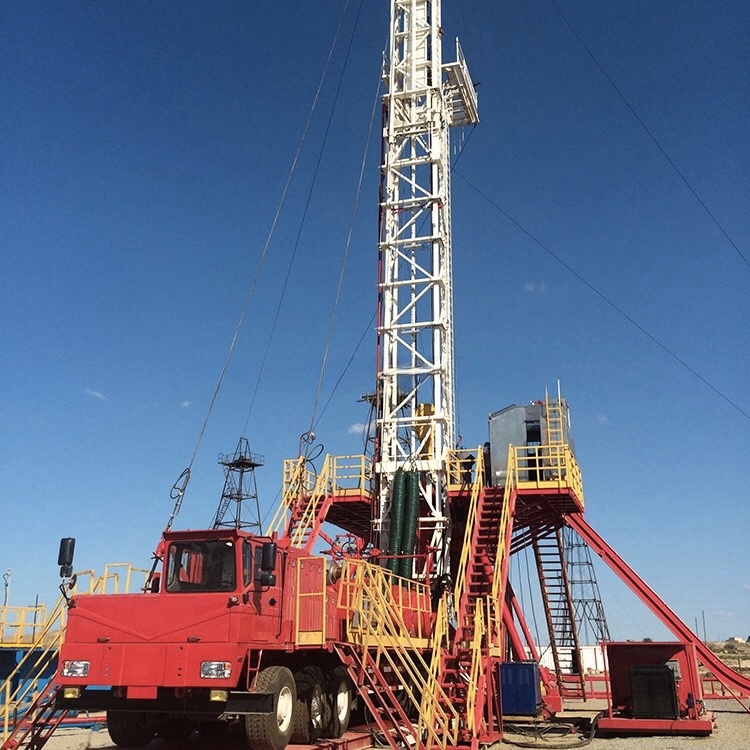

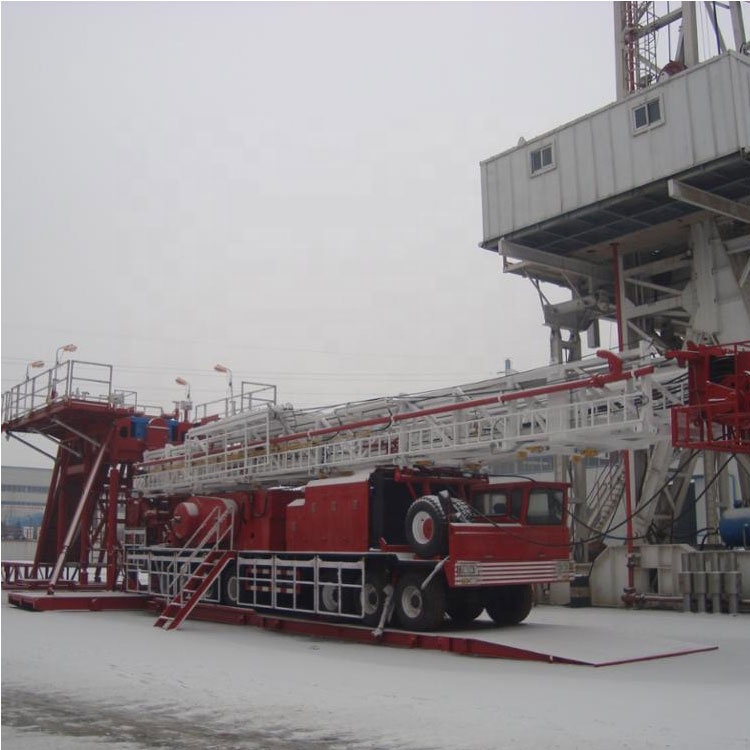

Characteristics for series of truck-mounted drilling rigs：
â—† Power system is fitted with engine and hydro-mechanical transmission.
â—† Electric, air, and hydraulic system is centrally controlled. Key components are world famous make.
â—† The mast design and manufacturing comply with API 4F and 8C specification. Finite element analysis and stress inspection test will be conducted for mast. The surface of structural pieces will be sand blasted.
â—† Chassis is powered by the deck engine via transfer case. Heavy duty wide wheel distance, high strength beam, hydraulic power steering.
Q: Are you trading company or manufacturer ?
A: With 11 years export experience, but we have been purchase agents for years of clients from America, Azerbaijan, South America, India, Egypt, South Africa, Kazakhstan.
Hope we could also be your sincere supplier in this field.
Q: How long is your delivery time?
A: Generally for the spares we have in stock, and for mud pump and other drilling rig equipments, it will delivery in 30 working days, for 1 complete set of drilling rig, delivery time will be at least 60 working days.
Q: What is your terms of payment ?
A: T/T, 30% advance payment, the balance 70% payment should be paid before delivery.
Q: How is the quality ?
A: All of our products are certified by API, ISO9001, we have professional technical department to make sure all the products could help clients earn more profit.
Q: Do you accept OEM products ?
A: Of course, we could manufacture according to your requirement and help you to choose the best reliable factory.
Q: How is the packing ?
A: We all packing meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
Q: How is the shipping ?
A: Shipping by air, sea and train both acceptable, and based on the good relationship with our all shipping agents, we could help every client to save more in the logistics and transportation.

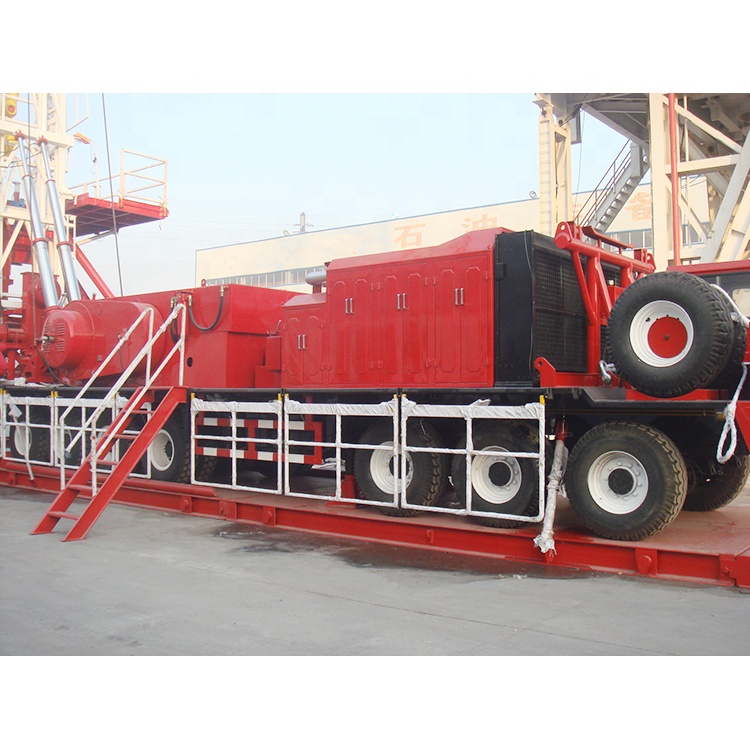

The BeyondPetro’s Heavy Duty Workover Oil Well Drilling Rig is a powerful piece of machinery that was designed to withstand even the toughest conditions of the oilfield. Built to handle heavy loads and high-intensity drilling operations for extended periods, this drilling rig is a must-have for any oil drilling operation.
It boasts a robust and flexible design that can be adjusted up to a wide range of applications. The revolutionary design ensures the rig can face a variety of drilling challenges, whether be it in the remotest locations or harsh surroundings such as harsh weather conditions, harsh terrains, and extreme temperatures.
This drilling rig was built to deliver superior performance and long stretches without failure. It was built using top-quality materials, including high-strength steel that can withstand the wear and tear that comes with the demanding work of oil drilling. This drilling rig can withstand any challenge thrown ensuring exceptional durability.
It was created to optimize production efficiency and operational safety. The rig is equipped with advanced level of safety technologies, ensuring that all operations are secure and safe. Its state-of-the-art hydraulic system, working with the hydraulic fracturing method, guarantees smooth, fast, and beneficial drilling.
The rig has a user-friendly interface that allows for easy procedure and upkeep. A dashboard is clear for visibility of all operations and effortless track of critical processes. The rig has easy-to-access part that enhances the simplicity of maintenance.
This is efficient, reliable, and environmental friendly. It can operate seamlessly with different kinds of drilling systems, including pneumatic, hydraulic, electric, and mechanical systems. Its design was structured to minimize footprint and noise levels, which makes it an ideal option for oilfields.
This BeyondPetro’s Heavy Duty Workover Oil Well Drilling Rig is sure to be a long term investment for oil drilling companies in need of reliable equipment.
