Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well Drilling Rig

Product Description

The Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well Drilling Rig will be actually the ideal service appropriate wishing to manage higher efficiency utilizing their drilling demands as well as manufacturing optimum.


This rig was produced to become seen an efficient, reliable as well as gadget high-performing will enable you towards accomplish your drilling goals along with simpleness. It functions a drilling optimal of 5000m as well as a horse power of 1500HP, which implies to ensure that it can easily deal with any type of dirt rock and type advancement which happens its own implies.


The style technological is skid-mounted for easy movement and transfer coming from the rig towards different drilling sites. The skid durable assists you to create specific that the rig stays steady and risk-free while drilling, providing a fantastic foundation where you can easily deal with.


The Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well Drilling Rigwas created towards endure environments that might be severe that makes it ideal for lots of drilling various. Its own difficult style assurances it a flexible gadget for oil as well as water well drilling for that reason it is produced possibly one of the absolute most difficult drilling environments, creating.


Additionally, the Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well Drilling Rig is produced easy maintenance. It boils down along with easy-to-use setups, creating this an job simple manage and operate. The rig's low-to-zero upkeep needs enable it to become available towards teams that might certainly not require considerable proficiency technological.


Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig factory

Product Paramenters
Rig Model
ZJ15CZ
ZJ20CZ
ZJ30CZ
ZJ40CZ
Installed Power
HP/KW
540HP
(402KW)
630HP
(470KW)
630 HP×2
(470 KW×2)
630 HP×2
 (470 KW×2)
Max.Hook Load
1350kN
1580kN
2250kN
2250kN
Max. Drill String Load
500kN
700KN
1150KN
1150KN
Draw works Rated Power
450HP
600HP
1000HP
1000HP
Transmission Mode
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Hydraulic+
Mechanical
Drive Mode
10×8
12×8
14×10
14×10
Nominal Drilling Depth (4 1/2"DP)
1500m
2000m
4000m
4000m
Mast Height
33m
35m
38m
38m
Rig Floor Height
4.5m
4.5m
6m
6m
Wire rope Diameter
Ф26mm
Ф29mm
Ф32mm
Ф32mm
Hydraulic System
14MPa
14MPa
21MPa
21MPa
Pneumatic System
0.8MPa
0.8MPa
0.8MPa
0.8MPa
Travel ling System
5×4
5×4
6×5
6×5
Overall Size   (m)
19.37×3.05×4.49m
20.1×3.05×4.49
23×3.2×4.8
23×3.2×4.8
Weight (kg)
52000 kg
58000Kg
85000 kg
85000 kg

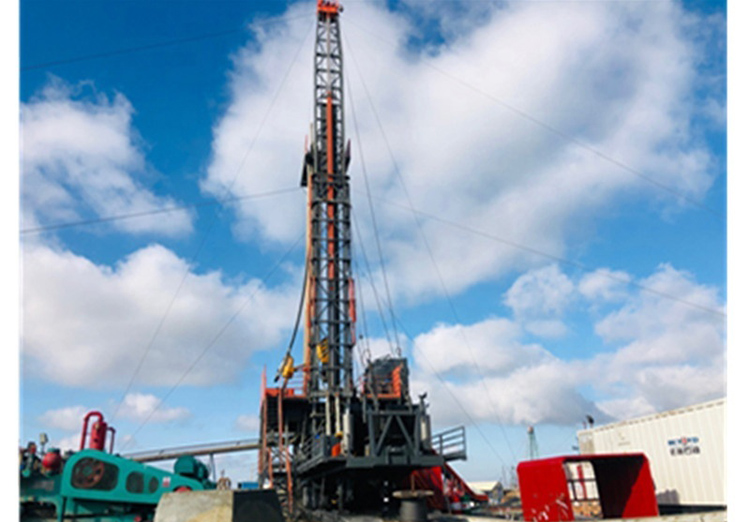

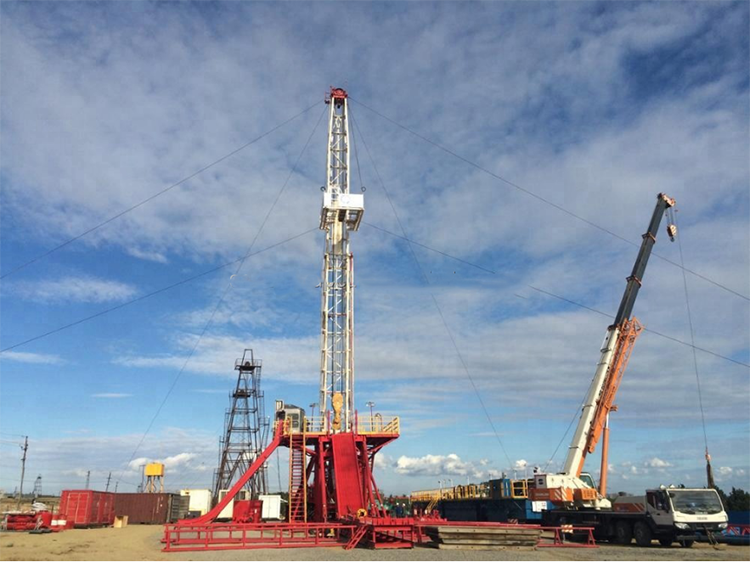

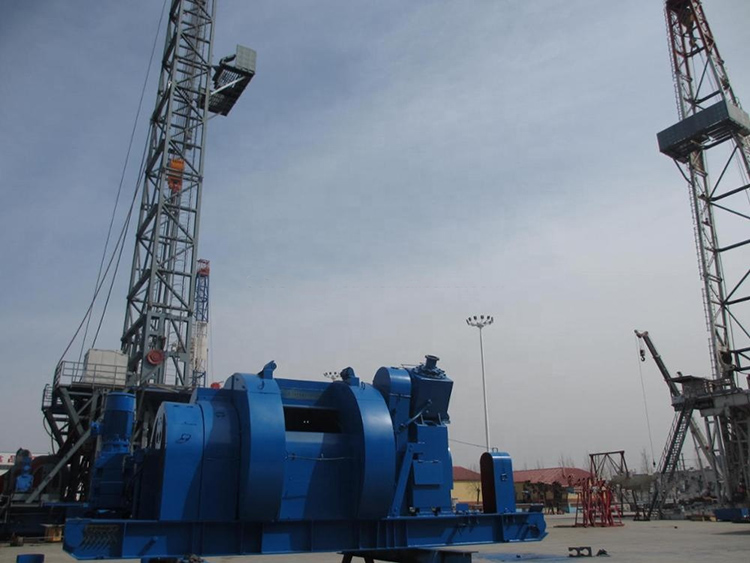

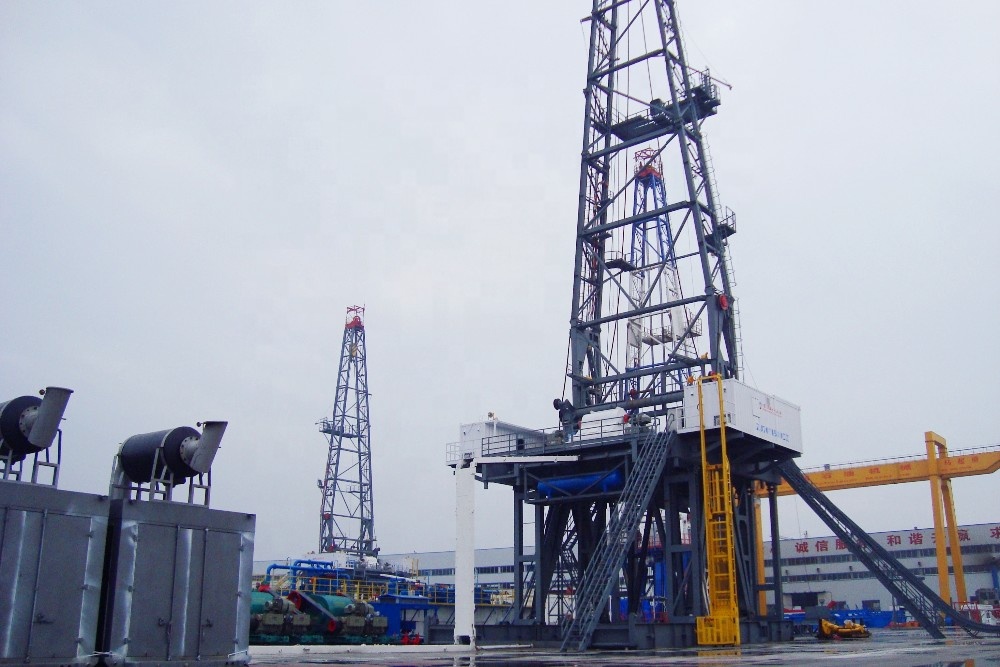

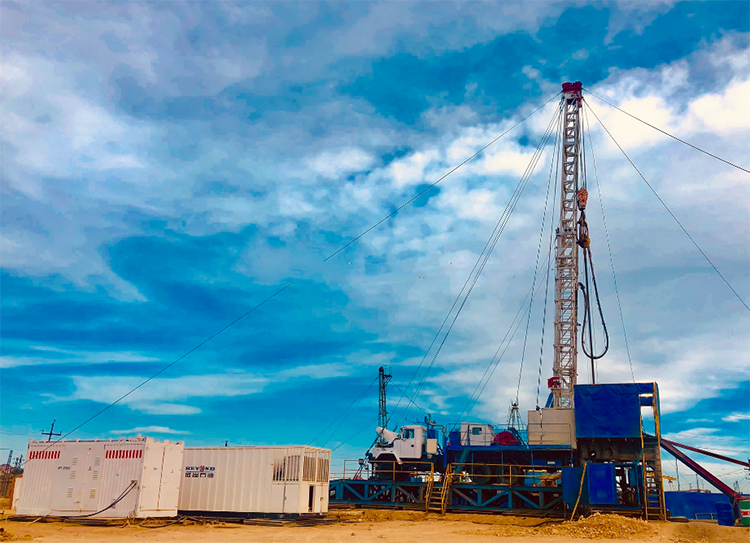

At Work Site:

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig supplier

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig manufacture

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig supplier

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

CUSTOMER VISITING:

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig manufacture

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Packing & Delivery

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig manufacture

Product Description

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Drilling Rig :

We supply a full line of drilling rig packages:

skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs (Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.

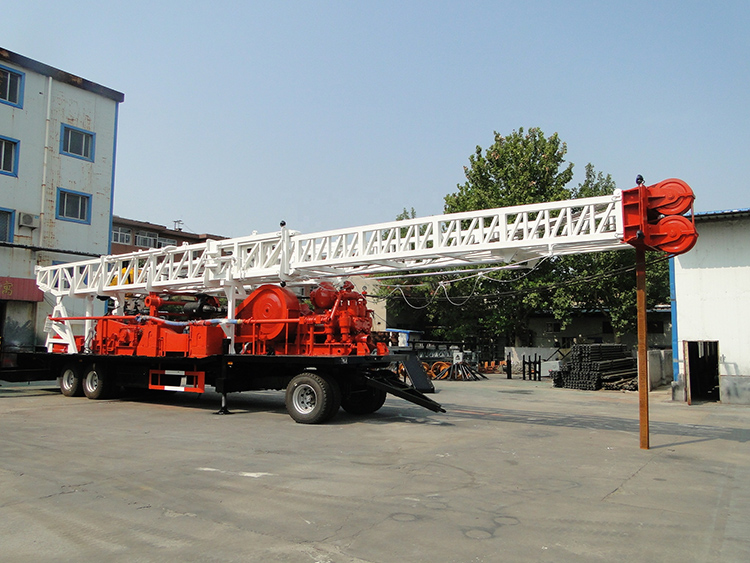

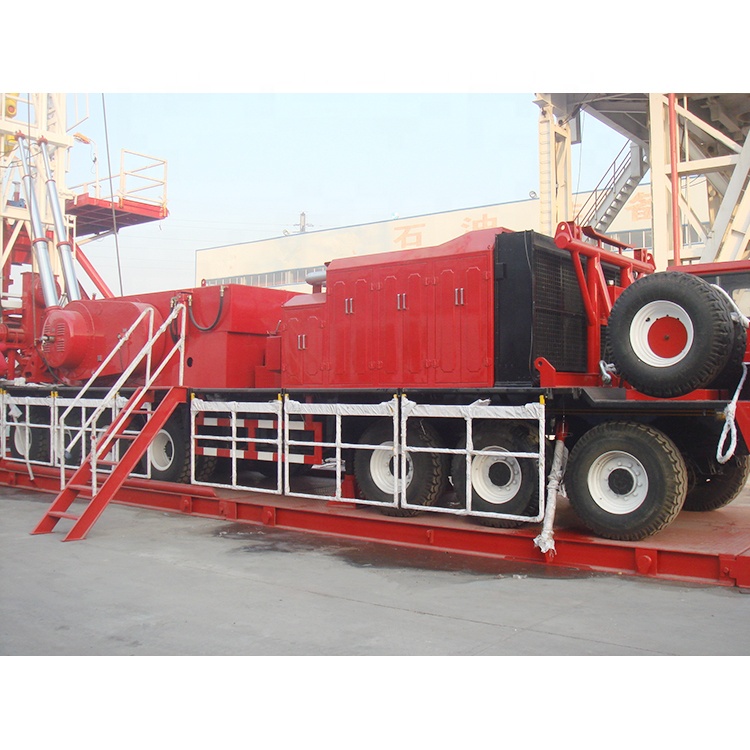

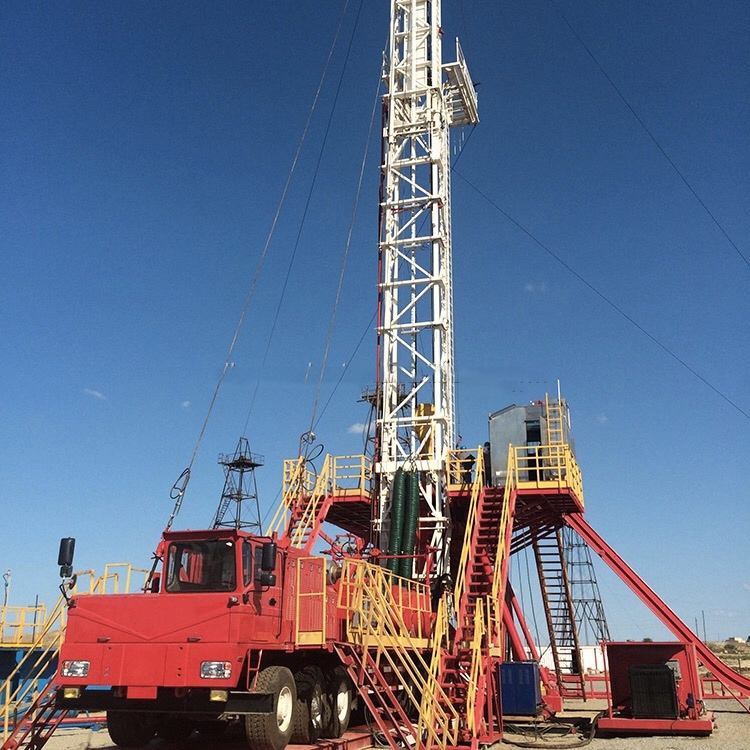

Truck-Mounted Rigs:

Our company has developed truck-mounted drilling rigs with drilling depth of 1500m, 2000m, 3000m and 4000m, and static hook load ranging from 1350kN to 2250kN. The truck- mounted drilling rigs feature heavy working load, reliable performance, good cross-country capability, easy mobilization and low cost, which are suitable for the drilling operation of medium depth and shallow oil well on land, desert and plateau.

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig manufacture

Title goes here.

Characteristics for series of truck-mounted drilling rigs:
   ◆ Power system is fitted with engine and hydro-mechanical transmission.
   ◆  Electric, air, and hydraulic system is centrally controlled. Key components are world famous make.
   ◆  The mast design and manufacturing comply with API 4F and 8C specification. Finite element analysis and stress inspection test will be conducted for mast. The surface of structural pieces will be sand blasted.
   ◆ Chassis is powered by the deck engine via transfer case. Heavy duty wide wheel distance, high strength beam, hydraulic power steering.

ON EXHIBITION:

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig details

We join the exhibition every year, after the situation changing better, we will go to your city to meet you !
Shipping :

Machinery Drilling Depth 5000m 1500HP Mechanical Skid-Mounted Oil Water Well  Drilling Rig supplier

FAQ

Q: Are you trading company or manufacturer ?
A: With 11 years export experience, but we have been purchase agents for years of clients from America, Azerbaijan, South America, India, Egypt, South Africa, Kazakhstan.
Hope we could also be your sincere supplier in this field.

Q: How long is your delivery time?
A: Generally for the  spares we have in stock, and for mud pump and other drilling rig equipments, it will delivery in 30 working days, for 1 complete set of drilling rig, delivery time will be at least 60 working days.

Q: What is your terms of payment ?
A: T/T, 30% advance payment, the balance 70% payment should be paid before delivery.

Q: How is the quality ?
A: All of our products are certified by API, ISO9001, we have professional technical department to make sure all the products could help clients earn more profit.

Q: Do you accept OEM products ?
A: Of course, we could manufacture according to your requirement and help you to choose the best reliable factory.

Q: How is the packing ?
A: We all packing meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

Q: How is the shipping ?
A: Shipping by air, sea and train both acceptable, and based on the good relationship with our all shipping agents, we could help every client to save more in the logistics and transportation.
