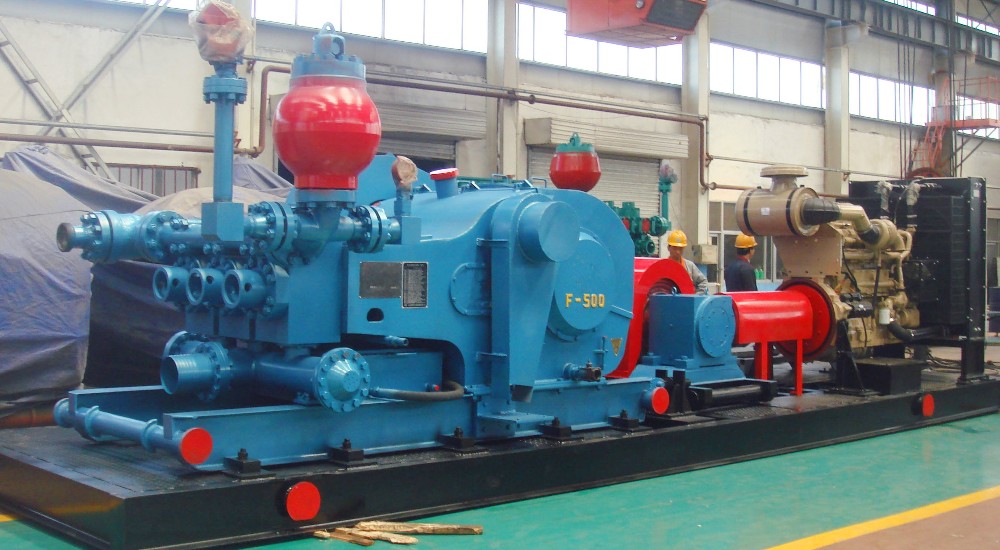

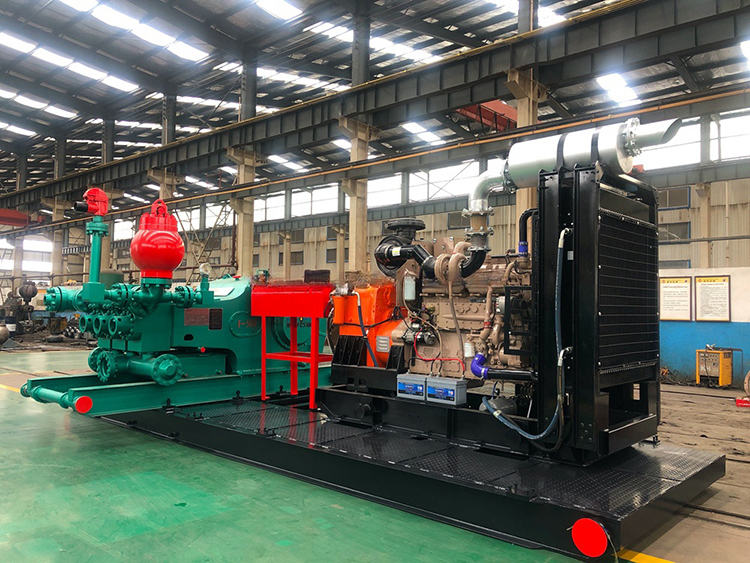

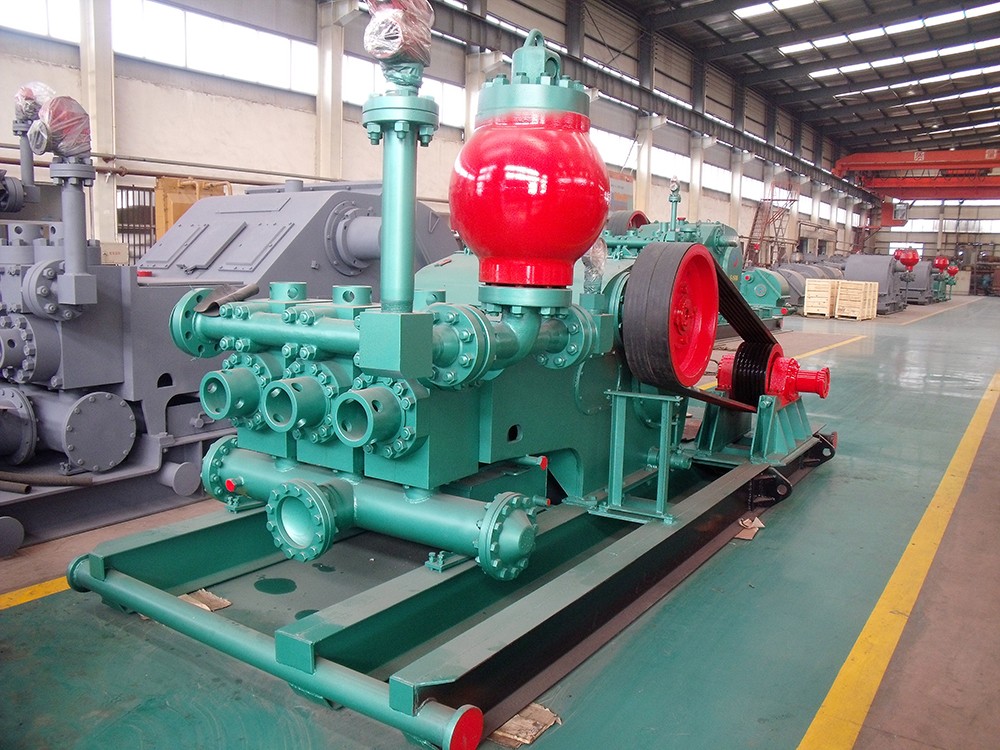

F series mud pump are applicable to the requirement of high pump pressure in oilï¬eld and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.
Our F series mud pump are designed and manufactured on the basis of American Emsco F series mud pump strictly according to America Petroleum Institution API 7K Standard. All of its expendable parts are interchangeable with any other spare parts produced according to API standard. Therefore it is easy to repair and maintain internationally .
|
Item
|
F500
|
F800
|
F1000
|
F1300
|
F1600
|
|
Power Rating HP(kw)
|
500 (373)
|
800 (597)
|
1000 (746)
|
1300 (969)
|
1600 (1193)
|
|
Stroke RatingSPM
|
165
|
150
|
140
|
120
|
120
|
|
Stroke Length(in /mm)
|
7.5" /190.5
|
9"/228.6
|
10"/254
|
12"/305
|
12"/305
|
|
Gear Ratio
|
4.286
|
4.185
|
4.207
|
4.206
|
4.206
|
|
Inlet Dia. (in/mm)
|
8"/203
|
10"/254
|
12"/305
|
12"/305
|
12"/305
|
|
Outlet Dia. (in)
|
4" Flange 5000psi
|
5-1/8" Flange 5000psi
|
5-1/8" Flange 5000psi
|
5-1/8" Flange 5000psi
|
5-1/8" Flange
5000psi
|
|
Valve
|
API5#
|
API6#
|
API6#
|
API7#
|
API7#
|
|
Max. Liner (in/mm)
|
6-3/4"/170
|
6-3/4"/170
|
6-3/4"/170
|
7"/180
|
7"/180
|
|
Overall Dimension L*W*H(mm)
|
3658*2709
*2231
|
3963*3025
*2410
|
4267*3167
*2580
|
4617*3260
*2600
|
4615*3276
*2688
|
|
Approx. Weight (kg)
|
9770
|
14500
|
18790
|
24572
|
24791
|
|
Stroke
per
Minute
|
Liner size (mm) and Pressure Rating(Mpa/psi)
|
|||||||||
|
φ170
|
φ160
|
φ150
|
φ140
|
φ130
|
φ120
|
φ110
|
φ100
|
|||
|
9.4
1365
|
10.6
1540
|
12.1
1750
|
13.9
2010
|
16.1
2335
|
18.9
2740
|
22.5
3260
|
27.2
3945
|
|||
|
Displacement (L/S)(gpm)
|
||||||||||
|
165
|
35.67
565
|
31.60
501
|
27.77
440
|
24.19
383
|
20.86
330
|
17.77
281
|
14.93
236
|
12.34
195
|
||
|
150
|
32.43
514
|
28.73
455
|
25.25
400
|
21.99
348
|
18.96
300
|
16.16
256
|
13.58
215
|
11.22
178
|
||
|
140
|
30.27
480
|
26.81
425
|
23.56
373
|
20.53
325
|
17.70
280
|
15.08
239
|
12.67
201
|
10.47
166
|
||
|
130
|
28.11
445
|
24.90
394
|
21.88
347
|
19.06
302
|
16.44
260
|
14.00
222
|
11.77
186
|
9.73
154
|
||
|
120
|
25.94
411
|
22.98
364
|
20.20
320
|
17.60
279
|
15.17
240
|
12.93
205
|
10.86
172
|
8.98
142
|
||
|
110
|
23.78
377
|
21.07
334
|
18.52
293
|
16.13
255
|
13.91
220
|
11.85
188
|
9.96
158
|
8.23
130
|
||
|
Based on 100% volumetric efficiency and 90% mechanical efficiency
|
||||||||||
F series mud pump are applicable to the requirement of high pump pressure in oilï¬eld and high displacement technology of well drilling with its solid and compact structure,small volume and out-standing operation performance.
F series mud pump has a longer stroke and can be operated at a lower stroke, thus improved the water supplying performance effectively and extended the lifetime of expendable parts in the fluid end greatly. The suction pulsation dampener has an advanced structure which is reliable to use and can make the pump realize its best suction performance.
The power end of F series mud pump adapts combined lubricating system of forced lubrication and splash lubrication. Reliable to lubricate and increased the service life of power end.
BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.
China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.
However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.
BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.

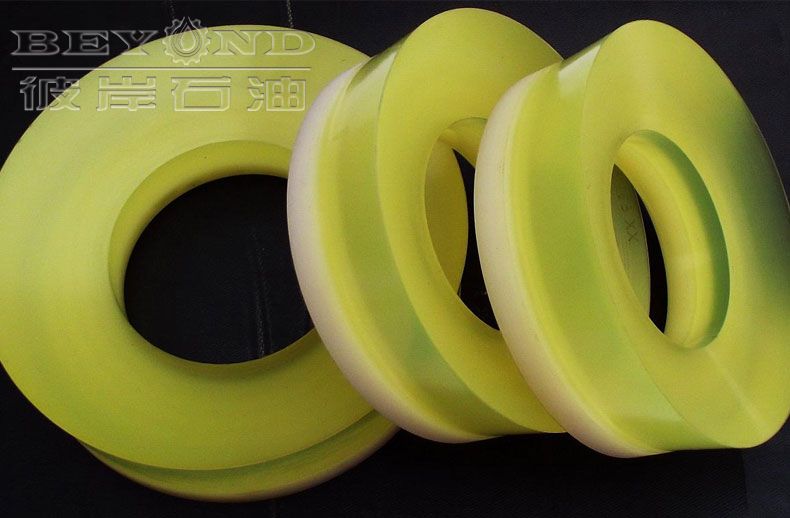

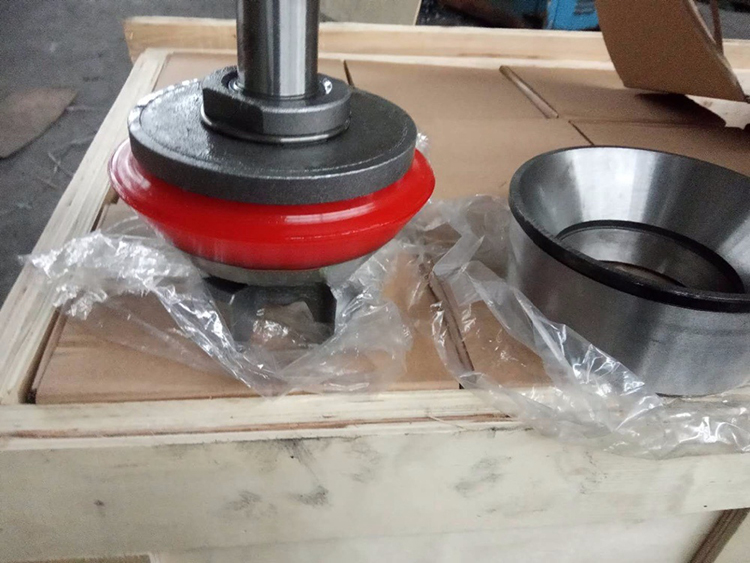

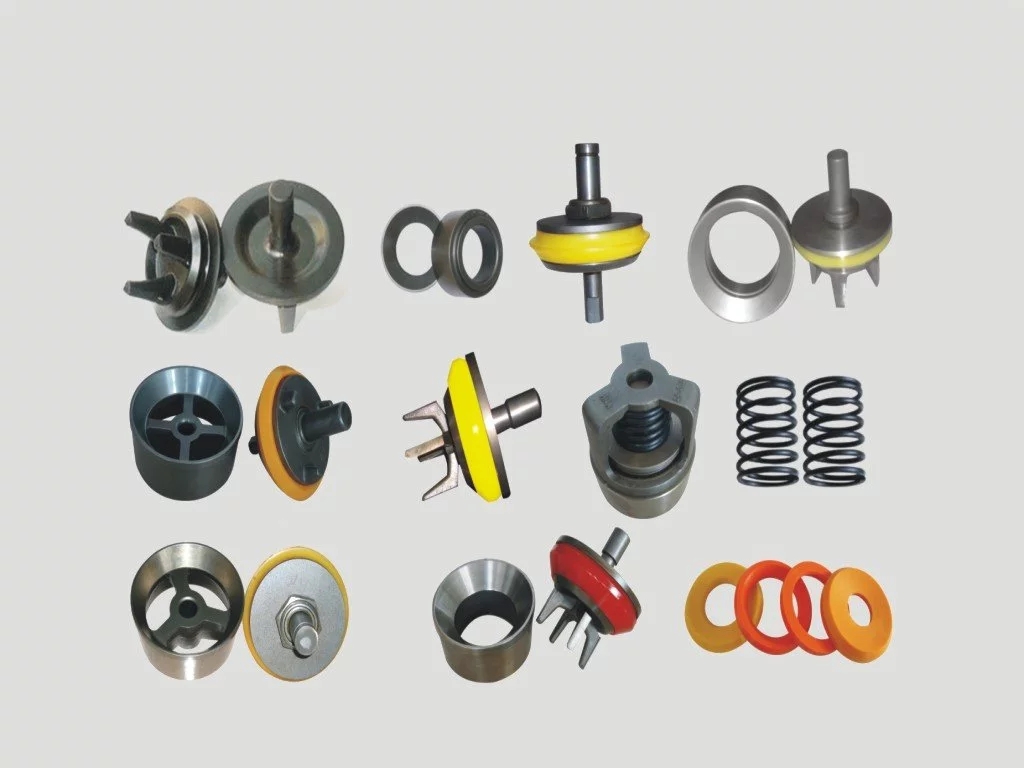

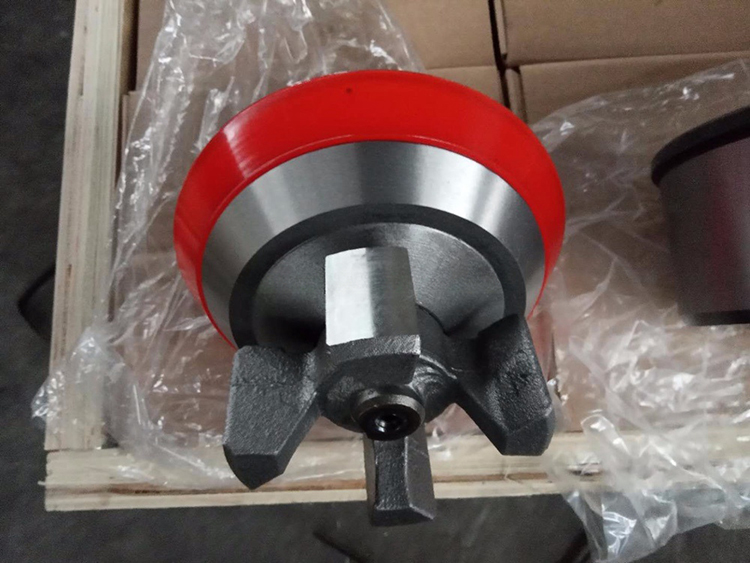

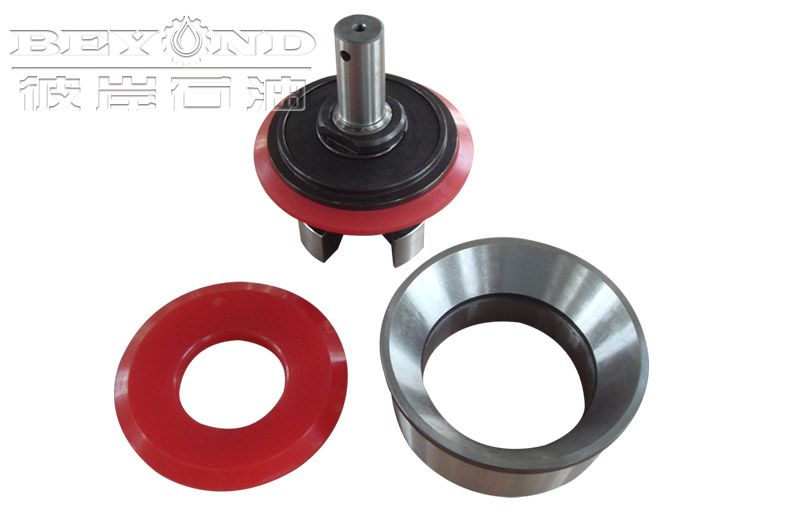

If you're looking to keep your Mud Pump operating at its peak, you'll definitely want to get your hands on BeyondPetro's Mud Pump Spare Parts Valve and Seats. This high-quality product was designed to work with diaphragm pump slurry mud pumps, and is sure to provide you with reliable performance day in and day out.
It was produced from top-of-the-line materials, so you can rest assured that they can resist even the toughest conditions. These parts are sure to hold up and keep your pump operating smoothly whether you're employed in harsh surroundings or working with especially abrasive materials.
One of the key benefits of this is that they're incredibly simple to install. No matter if you are not handy with tools, you can get these parts up and operating in no time. Which means less time used on installation, and more time spent having your work done.
Another best part about these spare parts is that they're made to offer outstanding sealing. That means you'll experience less leakage and fewer issues with your general pump. That's very good news for the bottom line since you'll spend less time and money on repairs and replacements.
Why wait? Get your hands on these BeyondPetro's Mud Pump Spare Parts Valve and Seats today and experience the difference for yourselves.
