Type Technical Spec. | ZJ30 | ZJ40 | ZJ50 | ZJ70 | ZJ90 |
Drilling Depth(M) | 3000 | 4000 | 5000 | 7000 | 9000 |
Max. hook load (KN) | 1700 | 2250 | 3150 | 4500 | 6750 |
Power of Drawworks (HP) | 750 | 1000 | 1500 | 2000 | 3000 |
Drive & Transmission Mode | Mechanical (belt/chain) | Mechanical/ Electric(AC/DC)/ Combined | Mechanical/ Electric(AC/DC)/ Combined | Mechanical/ Electric(AC/DC)/ Combined | Electric (AC/DC) |
Mast Height(M) | 36/38 | 42 | 45 | 45/48 | 46/50 |
Substructure Height (M) | 5 | 6.7 | 7.5 | 9 | 12 |
Rotary Table | ZP275 | ZP275 | ZP375 | ZP375 | ZP375 |

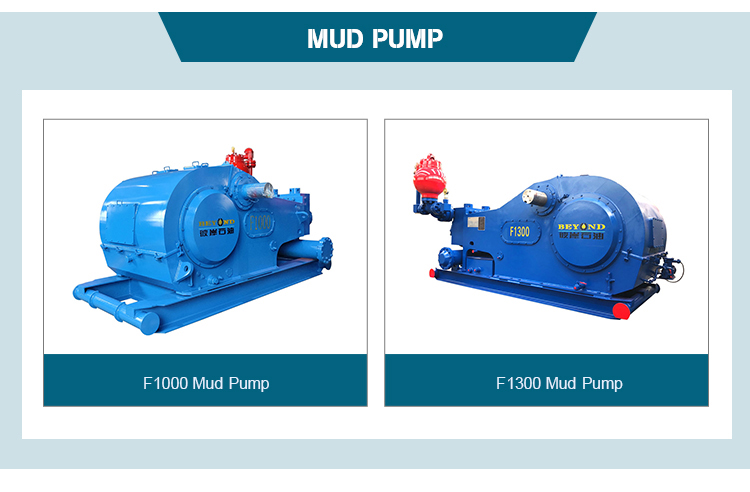

Mud Pump | F/3NB-1000 | F/3NB-1300 | F/3NB-1600 | F/3NB-1600 | F/3NB-2200L |
Power of Mud Pump(HP/KW) | 1000/735 | 1300/956 | 1600/1180 | 1600/1180 | 2200/1640 |
Mud Handing Capacity(m³) | 185 | 240 | 300 | 360 | 360 |
Rope Diameter(mm) | 29/32 | 32 | 35 | 38 | 45 |
Wireline System | 5x6 | 5x6 | 6x7 | 6x7 | 7x8 |
Manifolds Diameter(mm)xPressure(MPa) | ∮103x35 | ∮103x40 | ∮103x70 | ∮103x70 | ∮140x80 |
Rig Model | ZJ15CZ (XJ-550) | ZJ20CZ (XJ-650) | ZJ30CZ (XJ-750) | ZJ40CZ (XJ-850) |
ITEM | Specification | Specification | Specification | Specification |
Installed Power | 540HP (402KW) | 630HP (470KW) | 630 HP×2 (470 KW×2) | 630 HP×2 (470 KW×2) |
Max.Hook Load | 1350kN | 1580kN | 1800KN | 2250kN |
Max. Drill String Load | 500kN | 700KN | 750KN | 1150KN |
Drawworks Rated Power | 450HP | 600HP | 750HP | 850HP |
Transmission Mode | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical | Hydraulic+Mechanical |
Drive Mode | 10×8 | 12×8 | 14×8 | 14×10 |
Nominal Drilling Depth (4 1/2"DP) | 1500m | 2000m | 3000m | 4000m |
Mast Height | 33m | 35m | 38m | 38m |
Rig Floor Height | 4.5m | 4.5m | 6m | 6m |
Wirerope Diameter | Ф26mm | Ф29mm | Ф32mm | Ф32mm |
Hydraulic System | 14MPa | 14MPa | 21MPa | 21MPa |
Pneumatic System | 0.8MPa | 0.8MPa | 0.8MPa | 0.8MPa |
Travelling System | 5×4 | 5×4 | 5x4 | 6×5 |
Overall Size | 19.37×3.05×4.49m (Including Mast) 14.6×3.05×3.1m (Without Mast) | 20.1×3.05×4.49m (Including Mast) 15.56×3.05×3.1m (Without Mast) | 23×3.2×4.8m (Including Mast) 16. 56×3.2×3.2m (Without Mast) | 23×3.2×4.8m (Including Mast) 16. 56×3.2×3.2m (Without Mast) |
Total Mass | 52000 kg | 58000Kg | 73000 kg | 85000 kg |
If you are in industry looking for a top-quality drilling, look no further than the BeyondPetro’s Oilfield Workover XJ450 Truck-mounted Drilling Rig Made in China by BeyondPetro. This rig is a top-performing device that allows you to have more work carried out in a shorter time.
This truck-mounted rig was created to be extremely durable and mobile. It is fashioned with the latest technology and was manufactured from the highest materials, making sure it could survive even the most challenging drilling conditions. The rig is loaded with an effective engine hydraulic system making this capable of drilling deep and quickly.
One of the key highlights of this is its exceptional drilling performance. It offers a high torque drilling speed so you can drill faster and more efficiently. It offers a big drilling, providing you with greater freedom when it comes to the dimensions and number of an individual's drilling jobs.
Another great function of this is its ease of use. It comes having a user-friendly control that enables you to easily run the rig, monitor its performance, while making required alterations. And its lightweight design makes it effortless to transport to and from job websites.
It is also extremely versatile. You can use it for an array of drilling applications, including gas and oil drilling, water well drilling, mine exploration, and much more. It is fully customizable you can tailor it to your particular needs and requirements.
The BeyondPetro’s Oilfield Workover XJ450 Truck-mounted Drilling Rig Made in China by BeyondPetro is a fantastic investment for anyone looking for a top-notch drilling rig. Along with its enhanced functions, excellent performance, and superior durability, it is a very important addition to your fleet. So, why wait? Contact BeyondPetro to learn more about the XJ450 and see exactly how it can benefit you to take your drilling operations to the next level today.
