Product Description
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs manufacture
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
We supply a full line of land drilling rigs: skid-mounted, truck-mounted and trailer-mounted. Our skid-mounted drilling rigs are ranging from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m).
Type

Technical Spec.
ZJ30
ZJ40
ZJ50
ZJ70
ZJ90
Drilling Depth(M)
3000
4000
5000
7000
9000
Max. hook load (KN)
1700
2250
3150
4500
6750
Power of Drawworks (HP)
750
1000
1500
2000
3000
Drive & Transmission Mode
Mechanical
(belt/chain)
Mechanical/
Electric(AC/DC)/
Combined
Mechanical/
Electric(AC/DC)/
Combined
Mechanical/
Electric(AC/DC)/
Combined
Electric
(AC/DC)
Mast Height(M)
36/38
42
45
45/48
46/50
Substructure Height (M)
5
6.7
7.5
9
12
Rotary Table
ZP275
ZP275
ZP375
ZP375
ZP375
Mud Pump
F/3NB-1000
F/3NB-1300
F/3NB-1600
F/3NB-1600
F/3NB-2200L
Power of Mud Pump(HP/KW)
1000/735
1300/956
1600/1180
1600/1180
2200/1640
Mud Handing Capacity(m³)
185
240
300
360
360
Rope Diameter(mm)
29/32
32
35
38
45
Wireline System
5x6
5x6
6x7
6x7
7x8
Manifolds
Diameter(mm)xPressure(MPa)
∮103x35
∮103x40
∮103x70
∮103x70
∮140x80
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs factory

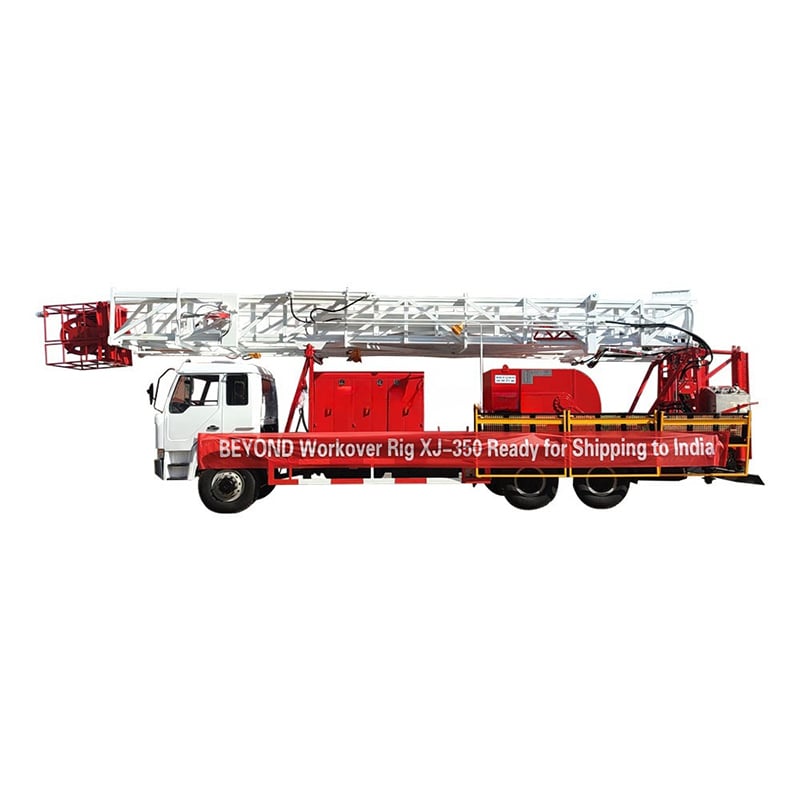

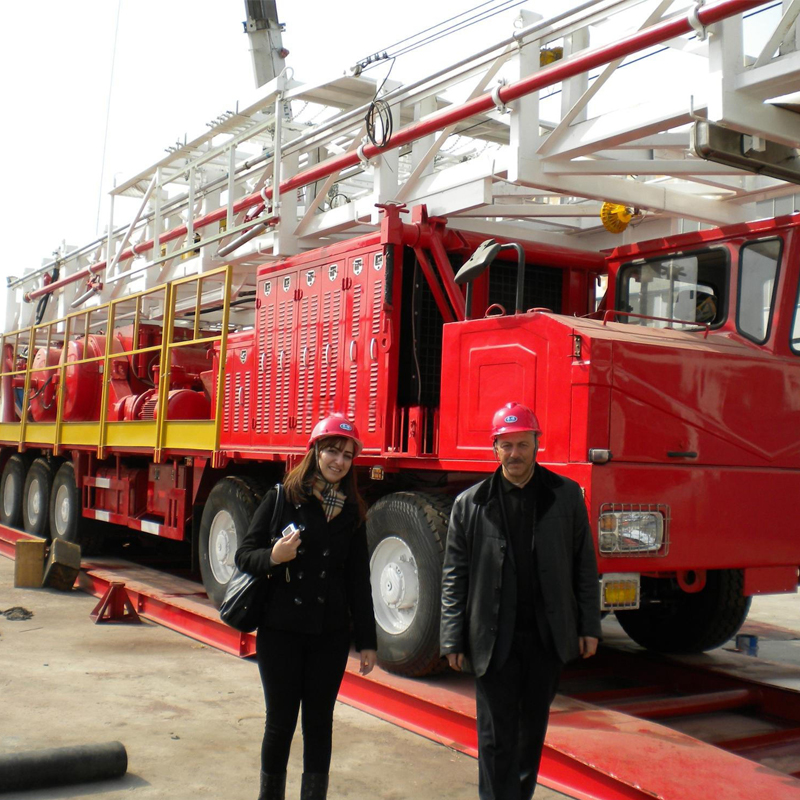

All its power system, drawworks, mast, traveling system and driving mechanism are all mounted on a self-propelled chassis for high efficient mobilization. BEYOND can provide mobile drilling rigs with drilling depth from 1000m to 4000m. The mobile rigs feature as heavy working load, reliable performance, good cross-country capability, convenient and lower cost mobilization.
Rig Model
ZJ15CZ (XJ-550)
ZJ20CZ (XJ-650)
ZJ30CZ (XJ-750)
ZJ40CZ (XJ-850)
ITEM
Specification
Specification
Specification
Specification
Installed Power
540HP (402KW)
630HP (470KW)
630 HP×2 (470 KW×2)
630 HP×2 (470 KW×2)
Max.Hook Load
1350kN
1580kN
1800KN
2250kN
Max. Drill String Load
500kN
700KN
750KN
1150KN
Drawworks Rated Power
450HP
600HP
750HP
850HP
Transmission Mode
Hydraulic+Mechanical
Hydraulic+Mechanical
Hydraulic+Mechanical
Hydraulic+Mechanical
Drive Mode
10×8
12×8
14×8
14×10
Nominal Drilling Depth (4 1/2"DP)
1500m
2000m
3000m
4000m
Mast Height
33m
35m
38m
38m
Rig Floor Height
4.5m
4.5m
6m
6m
Wirerope Diameter
Ф26mm
Ф29mm
Ф32mm
Ф32mm
Hydraulic System
14MPa
14MPa
21MPa
21MPa
Pneumatic System
0.8MPa
0.8MPa
0.8MPa
0.8MPa
Travelling System
5×4
5×4
5x4
6×5
Overall Size
19.37×3.05×4.49m
(Including Mast)
14.6×3.05×3.1m
(Without Mast)
20.1×3.05×4.49m
(Including Mast)
15.56×3.05×3.1m
(Without Mast)
23×3.2×4.8m
(Including Mast)
16. 56×3.2×3.2m
(Without Mast)
23×3.2×4.8m
(Including Mast)
16. 56×3.2×3.2m
(Without Mast)
Total Mass
52000 kg
58000Kg
73000 kg
85000 kg
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs manufacture
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs factory
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs manufacture
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs manufacture
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs factory
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs supplier
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs factory
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs supplier
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs manufacture
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs factory
ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs details

The BeyondPetro’s ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs is a world-class drilling created for oilfield workover oil and rig well drilling rigs. It is a robust and dependable drilling that can withstand the harsh operating of oilfields. The rig is skid-mounted, making this effortless to relocate and construct, and it can be quickly functional.



This was designed with high level technology that ensures efficient and dependable drilling. The rig has an effective 2000HP (1500 kW) electric engine which will deliver even more than enough drilling power. It features a draw hydraulic system having a maximum nominal hook load of 1,500 kN, ideal for deep drilling applications.



This was made of high-quality steel to ensure durability and can accommodate an optimum drilling of 9,800 meters (32,000 feet) with a maximum casing load ability of 804,000 pounds. Moreover, it features advanced drilling control systems that are completely controlled and automated remotely by a computerized control system. This system is effortless to run, and can be configured to deliver optimal drilling performance.



These are specifically made for workover rig oil and drilling applications. It is ideal for deep drilling operations within the oilfield and can also be utilized for a wide range of drilling projects, such as oil drilling, geothermal drilling, coal sleep methane drilling, and a lot more.



The ZJ-70 2000HP Skid-mounted Drilling Rig For Oilfield workover rig oil well drilling rigs' has substantial security features, with built-in safety systems that meet worldwide security requirements. These generally include, but they are not restricted to: safety control systems for drilling, a fire avoidance and control system, and online fuel systems. The rig's hydraulic and electrical system is additionally fashioned with security at heart and today, we have a fail-safe mechanism to prevent accidents in case there is a gear malfunction.
