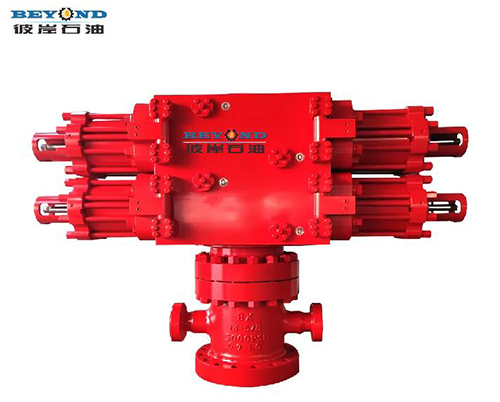

Ram BOP is an important well control equipment used to prevent blowout accidents during oilfield drilling operations. It consists of a body, bonnet, sealed ram assembly, piston, oil cylinder, cylinder head, locking shaft, protective cover, etc., and has the function of forcibly closing the wellhead.

The Ram BOP has U type, UM type, Mini U type and S type.

The design and manufacturing of Ram BOP meets the requirement of API 16A and GB/T20174. The Ram BOP is equipped with Ram of various kinds of size and specification.

Beyond can supply Ram BOP of the following specifications:

Working Pressure: 2,000Psi~20,000Psi

Nominal Bore Diameter: 71/16"~30"

Working Medium: petroleum, natural gas, mud, gas containing H2S, CO2

Temperature Ratings for metallic materials: T75, T20, T0

Temperature Ratings for non-metallic sealing materials:A~D(-26C~121℃)

Rated Working Pressure of Hydraulic Control: 3 000Psi;

Recommended Working Pressure:1200Psi~1500Psi

Upper and Lower Connections:Flanged,Studded or Clamped Upper and Lower

Locking Method: Hydraulic or Manual Locking

Specification of Hydraulic Oil Way: l"NPT

Matched Rams: Pipe Ram, Blind Ram, Shear Ram

Side Outlet Connection: Flanged, Studded or Clamped

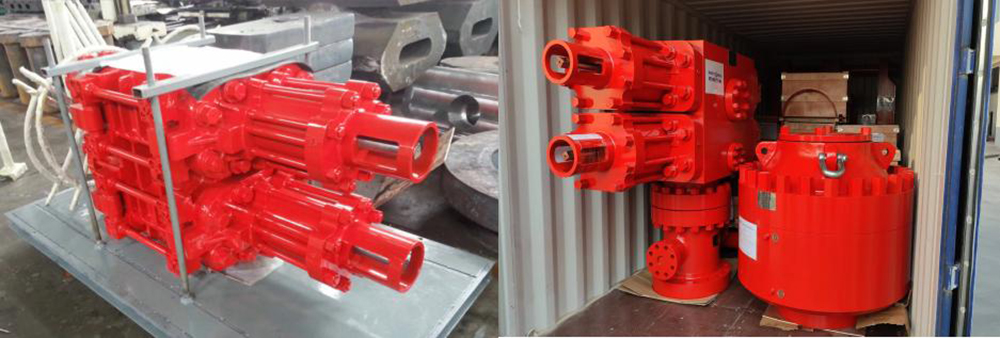

Our ram blowout preventers have been exported to various countries and have received unanimous praise, such as Congo and Azerbaijan etc. If you have an inquiry for ram blowout preventers, please do not hesitate to contact us. Choose Beyond, and we will not let you down.
